Features:

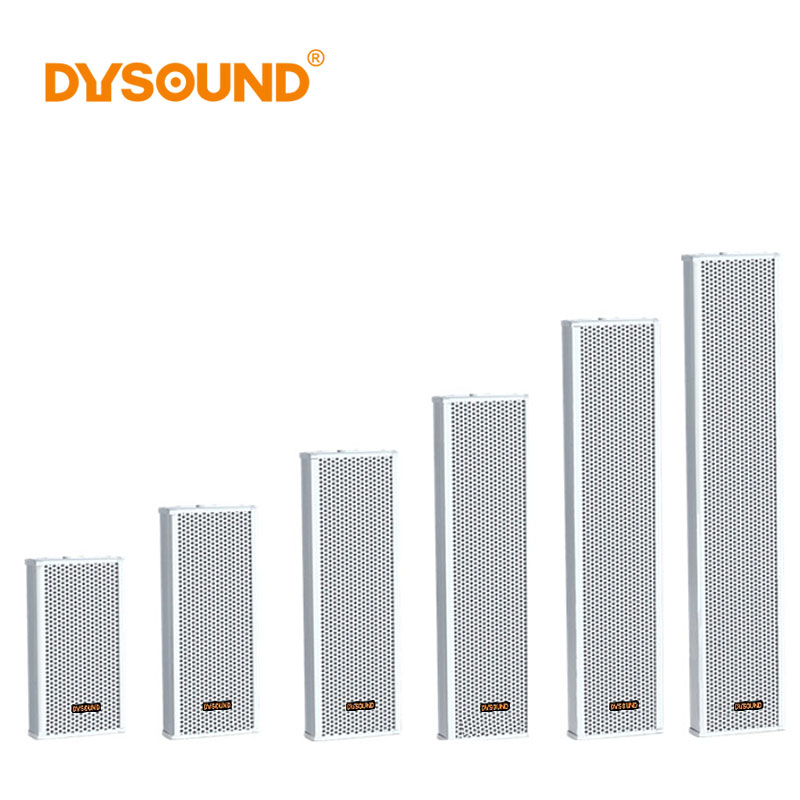

-Luxury indoor and outdoor sound column, this speaker is suitable for playing music and voice, with excellent frequency response and high efficiency performance. Ø Both the vocals and music have true amplification characteristics.
-Built-in 4-inch full-band speaker unit, the sound is clear and bright;
-Pure white paint, refined and compact appearance, elegant appearance;
-Rich frequency band, transparent and bright sound quality, high degree of reduction;
-The shell is made of aluminum-magnesium alloy and the iron mesh cover is strong and durable, which can withstand the sun, wind and rain;
-Suitable for indoor and outdoor environments, in schools, public places, parks, scenic spots, stations, etc.
技术参数 |
||||||
型号
|
CS-810
|
CS-820
|
CS-830
|
CS-840
|
CS-850
|
CS-860
|
喇叭单元
|
6.5"*1+3.5"*1
|
6.5"*2+3.5"*1
|
6.5"*3+3.5"*1
|
6.5"*4+3.5"*1
|
6.5"*5+3.5"*1
|
6.5"*6+3.5"*1
|
功率(W)
|
10W/20W
|
20W/40W
|
30W/60W
|
40W/80W
|
50W/120W
|
60W/120W
|
输入电压(V)
|
70V/100V
|
70V/100V
|
70V/100V
|
70V/100V
|
70V/100V
|
70V/100V
|
频响(Hz)
|
93±3 dB
|
94±3 dB
|
95±3 dB
|
96±3 dB
|
97±3 dB
|
98±3 dB
|
灵敏度(dB)
|
80Hz-17KHz
|
80Hz-17KHz
|
80Hz-17KHz
|
80Hz-17KHz
|
80Hz-17KHz
|
80Hz-17KHz
|
失真度
|
<3%
|
<3%
|
<3%
|
<3%
|
<3%
|
<3%
|
材质
|
铝镁合金
|
铝镁合金
|
铝镁合金
|
铝镁合金
|
铝镁合金
|
铝镁合金
|
防护等级
|
IPX6
|
IPX6
|
IPX6
|
IPX6
|
IPX6
|
IPX6
|
安装方式
|
悬挂式
|
悬挂式
|
悬挂式
|
悬挂式
|
悬挂式
|
悬挂式
|
产品尺寸(mm)
|
304*227*125mm
|
520*227*125mm
|
736*227*125mm
|
952*227*125mm
|
1168*227*125mm
|
1384*227*125mm
|
重量(kg)
|
3.2kg
|
5kg
|
6.8kg
|
8.6kg
|
10.5kg
|
12.5kg
|
颜色
|
喷砂白
|
喷砂白
|
喷砂白
|
喷砂白
|
喷砂白
|
喷砂白
|
