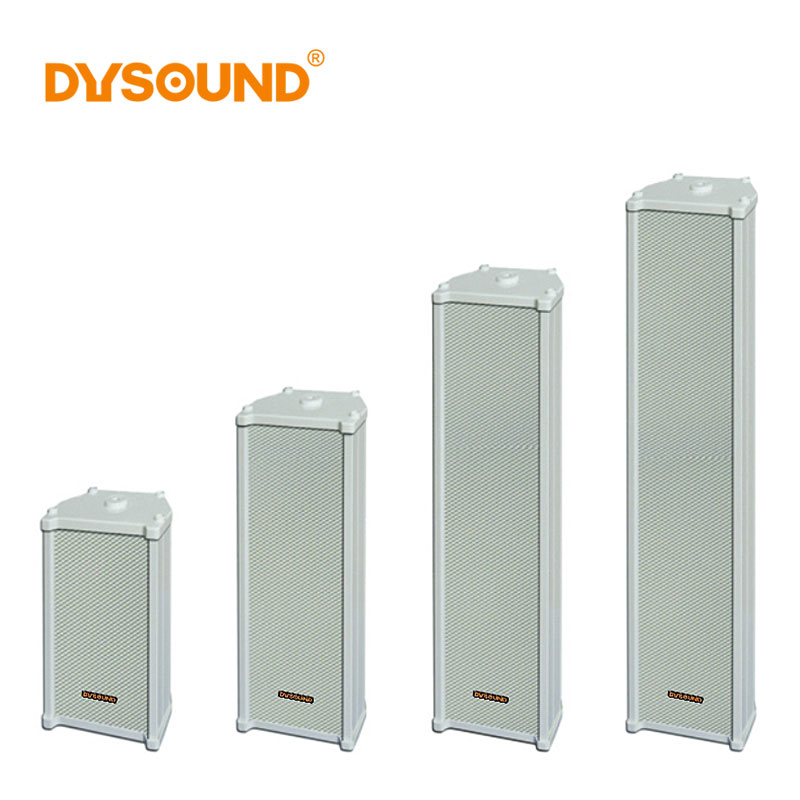

CS-5 series column

Features:

-Luxury indoor and outdoor sound column, this speaker is suitable for playing music and voice, with excellent frequency response and high efficiency performance. Ø Both the vocals and music have true amplification characteristics.

-Built-in 2.5-inch full-band speaker unit, the sound is clear and bright;

-Pure white paint, refined and compact appearance, elegant appearance;

-Rich frequency band, transparent and bright sound quality, high degree of reduction;

-The shell is made of aluminum-magnesium alloy and the iron mesh cover is strong and durable, which can withstand the sun, wind and rain;

-Suitable for indoor and outdoor environments, in schools, public places, parks, scenic spots, stations, etc.



技术参数
型号
CS-510
CS-520
CS-530
CS-540
喇叭单元
4*1〞
4〞*2
4〞*3
4〞*4
功率(W)
5/10
10/20
15/30
20/40
输入电压(V)
70V/100V
70V/100V
70V/100V
70V/100V
频响(Hz)
170-15
170-15
170-15
170-15
灵敏度(dB)
88±3 dB
91±3 dB
92±3 dB
93±3 dB
失真度
<3%
<3%
<3%
<3%
材质
铝镁合金
铝镁合金
铝镁合金
铝镁合金
防护等级
IPX6
IPX6
IPX6
IPX6
安装方式
悬挂式
悬挂式
悬挂式
悬挂式
产品尺寸(mm)
152×100×253
152×100×375
152×100×493
152×100×613
重量(kg)
1.8
2.5
3.32
4.2
颜色
白色
白色
白色
白色
