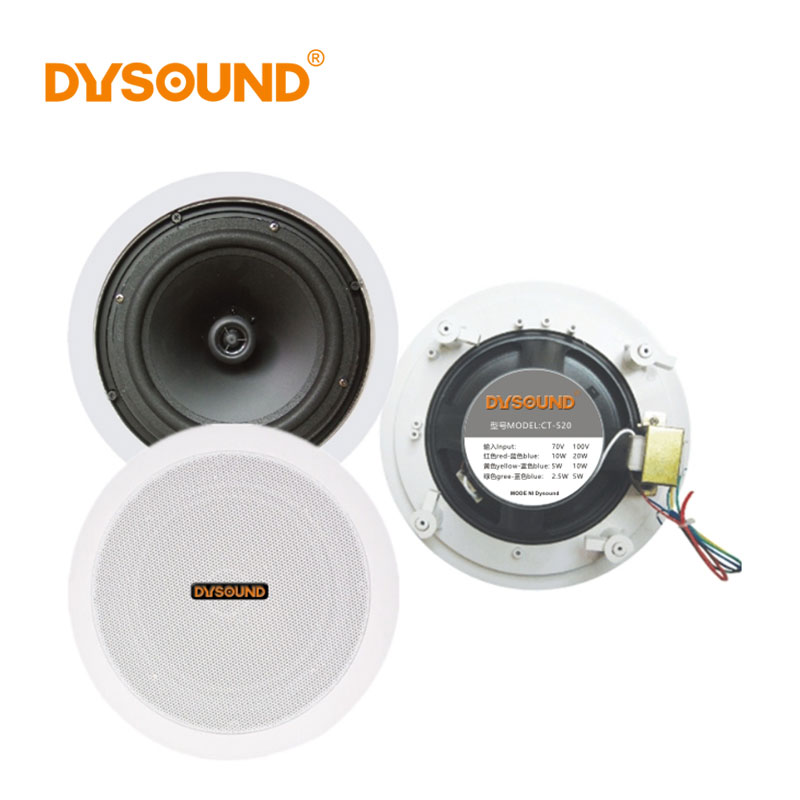

CT-530G

Features:

-New professional design ceiling speaker system, easy to install;

-High-quality 5/6 / 8-inch high-fidelity speakers, coaxial speaker unit design, beautiful sound quality and beautiful sound, rich sense of layering;

-White paint, can be well integrated with the environment;

-High-quality engineering plastic injection molding, durable, no deformation, no fading;

-The front is covered with a round sound-permeable metal mesh;

-Special damping treatment to reduce distortion, flat and wide frequency response;

-The bass has a strong three-dimensional sense, with a strong sense of shock, majestic and powerful, full and deep;

-Suitable for hotels, rooms, clubs, etc.



技术参数
型号
CT-520G
CT-530G
CT-540G
功率W
10W/20W
15W/30W
20W/40W
定压输入V(Ω)
70V-100V/8 ohms(Ω)定阻输出
频响Hz
100Hz-20KHz
90Hz-20KHz
50Hz-20KHz
灵敏度dB
88±3 dB
88±3 dB
88±3 dB
天花板开孔mm
Φ170mm
Φ200mm
Φ240mm
装饰罩尺寸mm
Φ203*80mm
Φ230*90mm
Φ270*105mm
安装形式
吸顶式
喇叭单元
5"*1+1"*1
6"*1+1"*1
8"*1+1"*1
装饰材料
ABS
重量
1.28kg
1.62kg
2.12kg
