Features:

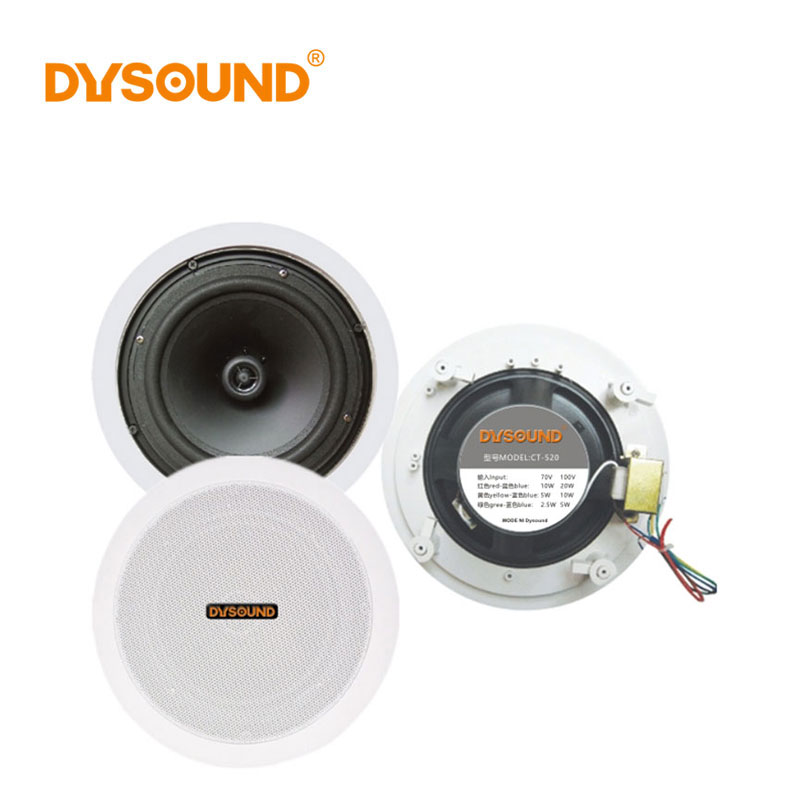

-New professional design ceiling speaker system, easy to install;
-High-quality 3-inch full-band unit speakers, covering the entire frequency range;
-The sound quality is soft and delicate, melodious and beautiful;
-White paint, can be well integrated with the environment;
-Special damping treatment to reduce distortion, flat and wide frequency response;
-Sensitivity, superior directivity, clear and beautiful sound;
-Suitable for hotels, rooms, clubs, etc.
技术参数 | |||
型号
|
CT-520G
|
CT-530G
|
CT-540G
|
功率W
|
10W/20W
|
15W/30W
|
20W/40W
|
定压输入V(Ω)
|
70V-100V/8 ohms(Ω)定阻输出
|
||
频响Hz
|
100Hz-20KHz
|
90Hz-20KHz
|
50Hz-20KHz
|
灵敏度dB
|
88±3 dB
|
88±3 dB
|
88±3 dB
|
天花板开孔mm
|
Φ170mm
|
Φ200mm
|
Φ240mm
|
装饰罩尺寸mm
|
Φ203*80mm
|
Φ230*90mm
|
Φ270*105mm
|
安装形式
|
吸顶式
|
||
喇叭单元
|
5"*1+1"*1
|
6"*1+1"*1
|
8"*1+1"*1
|
装饰材料
|
ABS
|
||
重量
|
1.28kg
|
1.62kg
|
2.12kg
|
