product description:

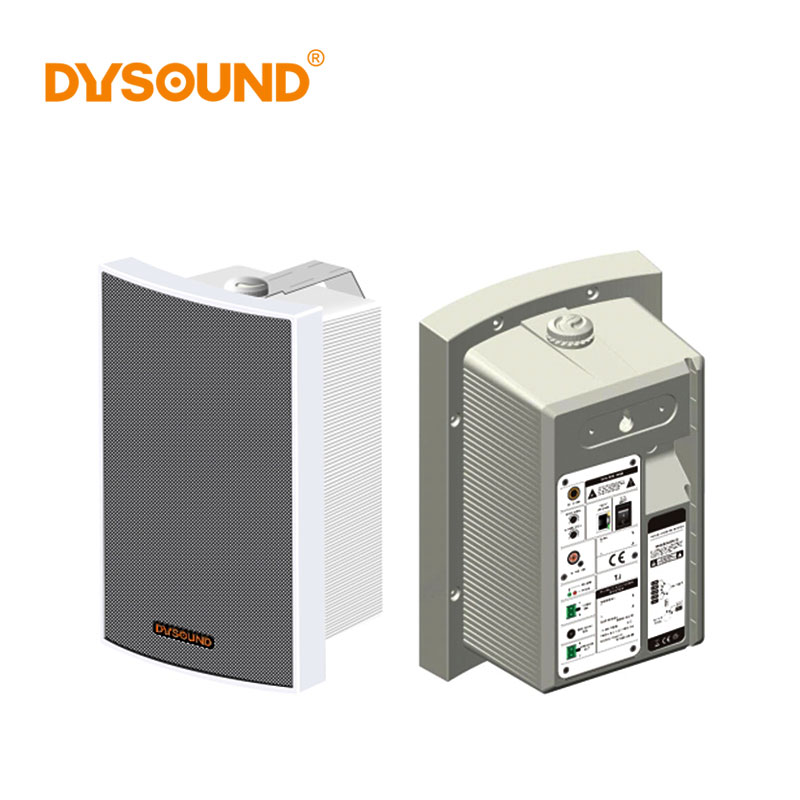

Professional integrated wall-mounted design, appearance using ABS anti-fall material, curved launch surface design, clear and loud sound, wide coverage angle.

With IPX6 waterproof design, aluminum alloy mesh surface, tested by national testing agency, suitable for outdoor all-weather application.

The cabinet adopts a superimposed design with a space volume of 4.5 liters. The waterproof design of the bends deepens the acoustic principle and increases the sense of sound.

The speaker adopts 5.5-inch bass basin, 20-core 3-inch silk film treble, and the intermediate frequency and high frequency have good connection.

Four types of installation options are available: U-shaped bracket horizontal installation, U-shaped bracket vertical installation, V-shaped bracket 75 ° radiation angle installation, and hoist hole wall installation.

The service software remotely adjusts the volume, plays audio programs regularly or in real time, and can use the knob to adjust the microphone and line input volume locally.

1 channel waterproof power connector (optional), 1 channel waterproof network port, 1 channel waterproof audio output port, suitable for outdoor installation.

Support WEB login to view and modify system parameters.

Standard RJ45 network interface, can be accessed where there is an Ethernet port, and supports cross-network segment and cross-route.

Technical Parameters:

Power: 30W (rated) / 60W (peak)

Network communication protocols: TCP, UDP, ARP, ICMP, IGMP

Network chip rate: 10 / 100Mbps

Audio coding: MP2 / MP3 / PCM / ADPCM

Audio sampling, bit rate: 8KHz-44.1KHz, 16 bits, 8Kbps-320Kbps

Signal to noise ratio: ≥90dB

Network sound delay: broadcast delay ≤100ms

Speaker unit: 5.5 "× 1 3" × 1

Frequency response: 60Hz-18KHz

Sensitivity: 97dB ± 3dB

Interface: 1 network interface, 1 line input, 1 microphone input, 1 power output

Power supply, power consumption: AC220V ± 10% / 50Hz / POE power supply

Cabinet size (WxDxH): 152mm long * 200mm wide * 300mm high

Net weight: 2.84kg
