Uses: Installed in the main control room, can carry out one-way broadcasting.

product description:

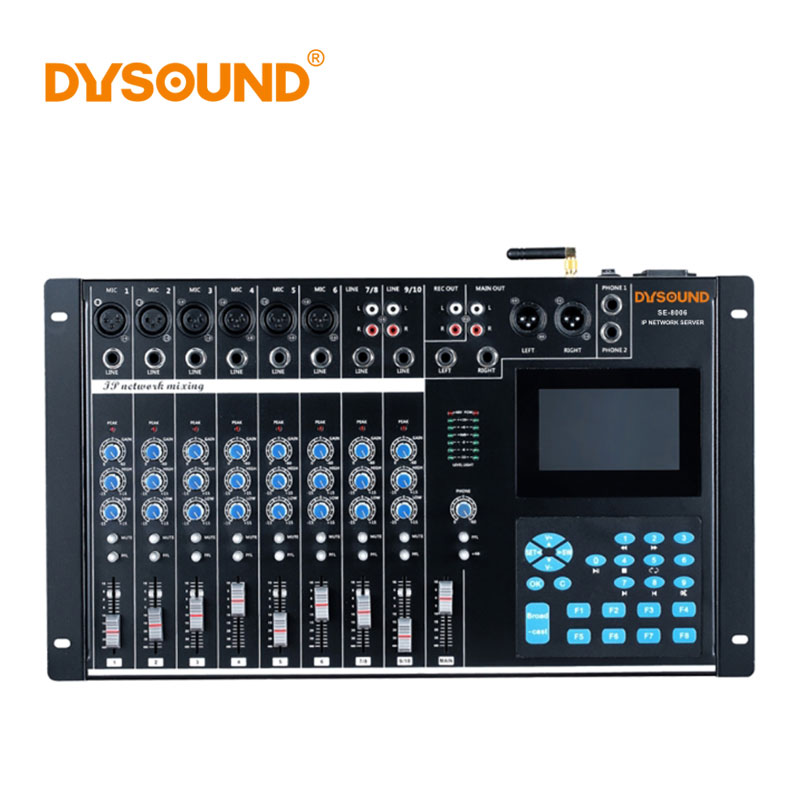

Professional mixer design, with 4.3-inch true color LCD screen, Chinese and English interface, startup time ≤1 second.

With 8 channels of audio input (6 channels of microphone / line input, 4 channels of stereo line input), the volume of each channel is adjusted with faders, and the feel is excellent.

With 5 audio outputs (2 main outputs, 2 monitor headphone outputs, 1 recording output).

Remotely play other IP audio terminals (partition or whole area) through the network.

You can order server programs or insert SD card to play as a sound source, and can control pause / fast forward / rewind.

One-click broadcast function (with 8 programmable broadcast buttons, preset program source and target partition).

Standard RJ45 network interface, can be accessed where there is an Ethernet port, and supports cross-network segment and cross-route.

Product parameters:

Network communication protocols: TCP, UDP, ARP, ICMP, IGMP;

Network chip rate: 10 / 100Mbps;

Audio coding: MP2 / MP3 / PCM / ADPCM;

Audio sampling, bit rate: 8KHz-44.1KHz, 16bit, 8Kbps-320Kbps;

S / N ratio, frequency response: ≥90dB, 20Hz-16KHz;

Network sound delay: broadcast delay ≤30ms;

Display: TFT LCD screen;

Audio interface: 6 microphone / line input, 4 line input, 2 line output, 1 set of recording output, 2 monitor earphone output;

Other interfaces: 1 RJ45 network port, 1 SD card socket;

Power supply, power consumption: AC 100-240V, ≤15W

Size: 485 × 266 × 93mm

Weight: 5.1Kg
