product description:

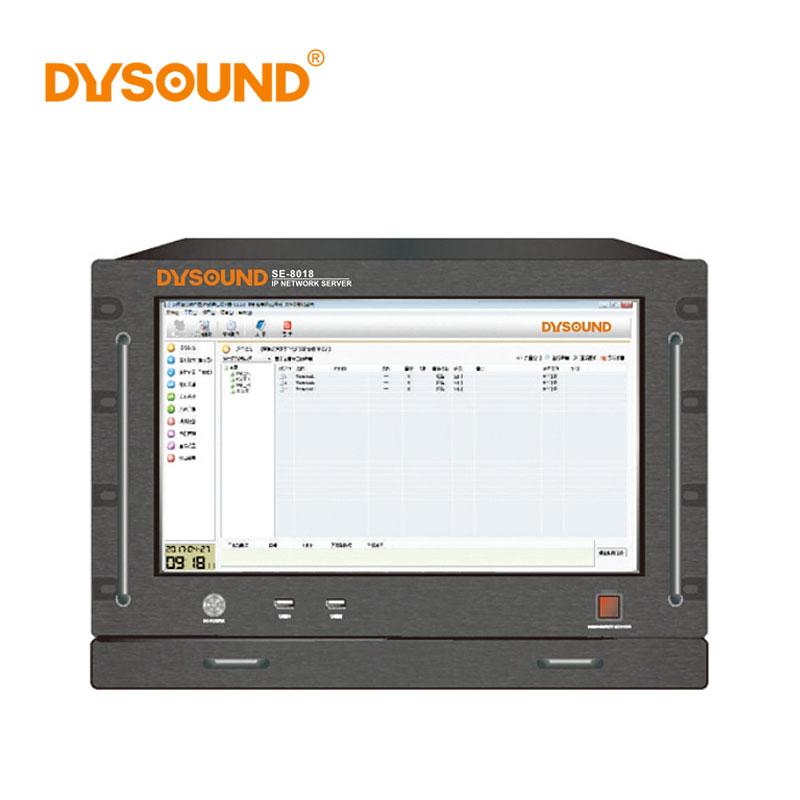

IP network broadcasting system software running carrier is the network broadcasting system management and control center.
Installed in the main control room, real-time and effective management of the entire broadcast system.
Using industrial-grade industrial computer chassis design, steel structure design, has a high anti-magnetic, dust-proof, impact-proof capabilities.
It adopts 17-inch industrial-grade rugged touch screen, easy-to-use touch screen control, with pull-out mouse and keyboard.
Support dedicated 100M / Gigabit network transmission, can transmit hundreds of program sources at the same time, and can set up 1000 partitions.
Industrial-grade special motherboard design, faster processing speed, better performance, suitable for long-term operation.
The built-in large-capacity hard disk has the characteristics of anti-vibration, anti-fall, fast reading and writing speed, low power consumption and so on.
Built-in audio monitoring function, adjustable volume.
Active plug-in card design, expandable 16 * 16 audio matrix and other customized function boards.
Provide four peripheral power output, using universal socket design, each current up to 5A.
With one-button fire emergency alarm system button, the alarm area can be set arbitrarily in all areas, and the touch key is designed to prevent misoperation protection.
There are 4 independent microphone interfaces for XLR and TRS two-in-one interface, which is convenient for access to each microphone, 2 sets of stereo audio input channels, 4 output main output channels and group channels, which can be infinitely extended for external sound source collection. The microphone channel has + 48V phantom power switch and independent volume adjustment.
With 1 set of short-circuit output interface and 1 set of 100V output interface, it can manage other short-circuit control equipment and speakers.
Scalable 100V constant pressure audio signal output.
Built-in PC player, can automatically or manually play a variety of audio format files, with synchronous broadcast, partition broadcast, terminal broadcast, device control, terminal control, edit program, download program and other functions.
The system control software constitutes the system management and control center, which completes the configuration of each source of the broadcasting system, power manager, alarm mode, partition, terminal, and the software interface is intuitive to operate. It can directly select the source of each partition and each terminal and manually broadcast;
Product parameters:
Screen size: 17 inches
Control mode: 1920 * 1024 resolution LCD, resistive (five-wire) touch screen
Display voice: Chinese Simplified and Traditional, English
Working environment: ambient temperature: 5 ℃ -40 ℃, relative humidity: ≥75%
Motherboard: X86 architecture
Standard interface: 6 * USB interface, 6 * serial port, 1 * network port, 1 * VGA, 1 * HDMI, 4-way power management, 1 button fire emergency button
Audio interface: 1 headphone, 1 microphone, 4 microphone inputs, with 48V phantom power, 2 line inputs, 2 main outputs and 2 group outputs
Hard drive: 128G solid state drive
Memory: DDR3 1600MHz 4G (due to product upgrades, the capacity continues to increase)
Network card: Gigabit network card
CPU: 4-core CPU
Network communication protocols: TCP, UDP, ARP, ICMP, IGMP
Network chip rate: 10 / 100Mbps
Audio coding: MP2 / MP3 / PCM / ADPCM
Audio sampling, bit rate: 8KHz-44.1KHz, 16bit, 16Kbps-192Kbps
Frequency response: 20Hz-20KHz
Signal-to-noise ratio of system audio signal: LINE: 70dB, MIC: 60dB
System audio signal distortion: 1KHz <0.5%
System audio signal standard input level: LINE: 300mV, MIC: 5mV
System audio signal standard output level: 0dBV
Power consumption: AC 220V / 50Hz / 300W
Software operating platform: Windows XP / 2000/2003/7
Dimensions: 484 × 358 × 352mm
