product description:

Unified management of all IP intercom equipment in the system, including paging microphone, intercom terminal, broadcast terminal and interface equipment;

Instantly display the running status of various terminals, such as login IP address, volume, task status, and remotely adjust the volume of all terminals;

Configure various terminal parameters: terminal name, broadcasting authority (operating range, priority), intercom authority (calling range, priority), monitoring authority (monitoring range), etc .;

The IP network broadcast control system has WIFI on-demand for mobile phones and supports arbitrary selection of broadcast terminals for broadcasting;

With real-time broadcast and scheduled broadcast, you can broadcast music or notification to the designated terminal through the sound card;

File broadcasting, playing audio files in the server to the specified terminal (supporting simultaneous broadcasting of any multi-channel files);

Scheduled tasks to play the contents of the file list to the preset terminal at a set time;

Firefighting broadcast, when the server receives the trigger signal of the terminal, it will play the emergency evacuation voice to the terminal in the designated area;

Program management, maintenance of broadcast audio files required by the system, easy to call workstations or terminals;

Log function, every call, call and broadcast operation are recorded for query;

The capacity of a single server is 1000 terminals, supporting 64 servers interconnection;

Responsible for audio streaming services, scheduled task processing, workstation management and rights management

Provide timing playback and real-time on-demand services for all digital audio terminals, respond to the playback requests of each broadcast controller.

Provide data interface services for workstations.

The audio server software can convert traditional audio resources into digital programs and store them in the system server, which is convenient for reuse and simultaneous use.

The server supports up to 5 sound cards, realizing multi-channel real-time broadcast.

With the function of timing automatic switch on and off.

Support multi-level servers (suitable for large-scale WAN projects).

Provide double insurance function, when the server fails or is infected with virus, the IP network master can maintain the basic broadcast function of the system except on-demand and workstation login.

When the main control machine fails, the server can also take over the system, acting as a management terminal, supporting the hot switching of the main server and the backup server to improve the system reliability.

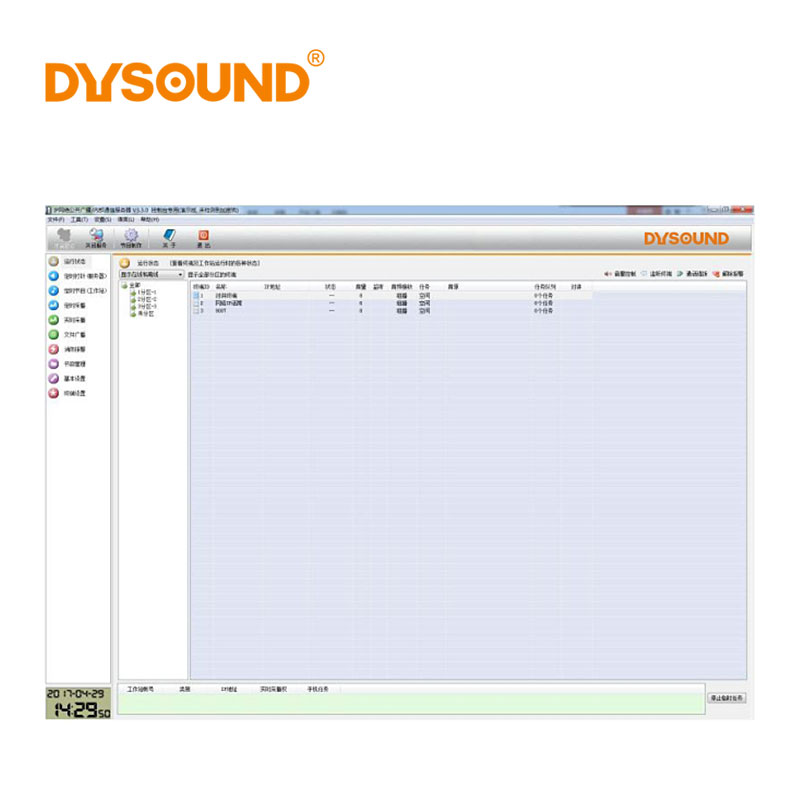

The network terminal can be arranged at the installation point through the electronic map tool according to the construction site, and the working status of each terminal can be displayed in real time.

The electronic map tool has production and display functions, which can display 8 kinds of network terminal working states, including unlogged state, logged in state, real-time broadcast state, scheduled ringing or scheduled program state, call state, alarm state, intercom state, Receive intercom status, various display status have corresponding intuitive icons for easy viewing
