product description:

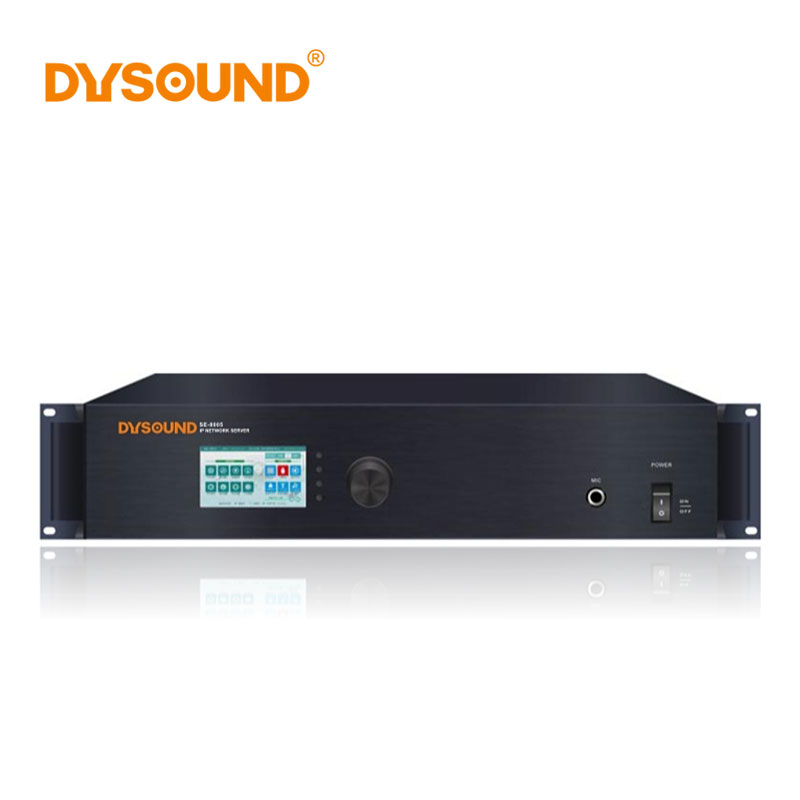

Standard chassis design, 2U aluminum alloy panel. Light touch buttons and user-friendly drawing design, beautiful and practical.

The system's core equipment manages all terminals and can work independently of the server.

Using real-time embedded operating system, high stability and high reliability, without fear of virus intrusion.

High-speed industrial grade (ARM + DSP) chip, startup time ≤ 2 seconds, TFT 4.3-inch LCD screen and control keys.

Unified management of paging microphone / terminal task scheduling, instant display terminal status, system capacity up to 1000 audio terminals.

It has a built-in real-time audio encoder, which digitizes external analog audio, and the signal processing delay is less than 10 milliseconds.

Built-in program play function, can export the server's timed tasks and MP3 files to the SD card, to achieve automatic broadcast to the terminal (supports simultaneous broadcast of 5 channels), this method does not depend on the server, and can be used when the server is turned off .

With microphone jack, optional call handle, to achieve one-way calling and two-way intercom function.

Standard RJ45 network interface, can be accessed where there is an Ethernet port, and supports cross-network segment and cross-route.

Product parameters:

Network communication protocols: TCP, UDP, ARP, ICMP, IGMP

Network chip rate: 10 / 100Mbps

Audio coding: MP2 / MP3 / PCM / ADPCM

Audio sampling, bit rate: 8KHz-44.1KHz, 16bit, 16Kbps-192Kbps

Signal to noise ratio: ≥90dB

Frequency response: 20Hz-16KHz

Network sound delay: broadcast delay ≤30ms intercom delay ≤30ms

Display mode: TFT 4.3 ”LCD 480x272

Interface: 1 RJ45 network port, 2 alarm inputs, 2 alarm outputs, 1 controlled power output, 1 line input, 1 line output, 1 microphone input

Working temperature and humidity: -10 ℃ ~ 50 ℃, ≤90% RH

Working voltage: AC 100-240V

Power consumption: ≤20W

Product size: 483 × 398 × 88mm

Weight: 5.6Kg
