Product Usage:

◆ Suitable for indoor and outdoor environment installation, anti-stamping, waterproof and anti-theft design; two-way visual intercom communication with the video intercom host; playing background music set in the system, timing bell task, collecting sound source and other functions

◆ Scope of application: intercom for safe cities, safe campuses, scenic spots, etc., regular broadcast system.

Features:

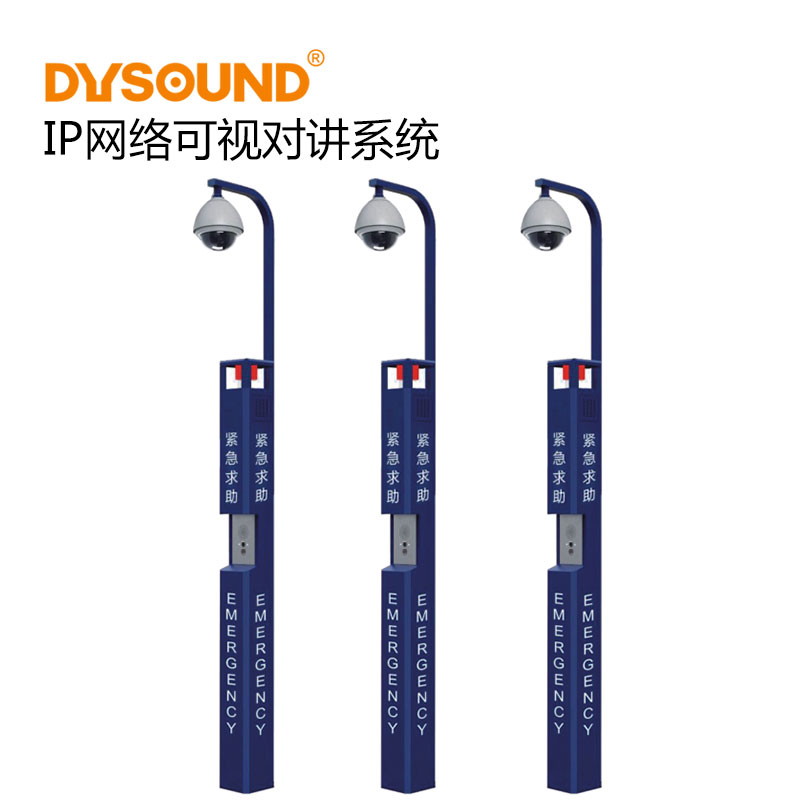

◆ Rectangular column design, simple appearance, beautiful lines, exquisite workmanship, strong and durable.

◆ The product is based on the Linux operating system architecture, has extremely high security and excellent stability, and supports 7x24 hours of uninterrupted work.

◆ Using the application of embedded audio and video processing technology, high-speed industrial-grade single chip, the startup time is less than 1s.

◆ One-key or two-key terminal can be selected to realize the alarm and event consultation in case of emergency, and to perform full-duplex video intercom with the IP network HD video intercom host.

◆ Built-in 3W full-range speaker and high-sensitivity microphone are used for hands-free calling, receiving broadcast and monitoring.

◆ Built-in 1080P high-definition camera, wide-angle lens, using H.264 encoding to achieve high-definition video intercom.

◆ The high-definition camera has a dynamic self-bandwidth, with strong light suppression and weak light compensation functions, and works normally in the backlight environment.

◆ Built-in digital audio processor, improve noise reduction effect, improve the receiving distance and audio quality.

◆ Compatible with standard Onvif protocol, SIP protocol, GB28181 protocol, and can be separately connected to VOIP telephone system (compatible with mainstream IP-PBX)

◆ Built-in warning light, the warning light prompts during intercom, it can also be controlled by the monitoring center to blink.

◆ Anti-disassembly alarm, when the terminal is disassembled when it works normally, it will automatically alarm to the server.

◆ Built-in 2x30W dual-channel digital power amplifier, can bring two 30W fixed-resistance speakers for timing broadcasting or local amplification; with network volume setting.

◆ 1 channel audio signal input interface, suitable for on-site local amplified broadcasting function.

◆ 1 channel audio signal output interface, can be extended with external power amplifier, wiring connection is very convenient.

◆ 1 channel recording signal output interface, can record 24 hours.

◆ 1 channel short-circuit input, external alarm button can be connected; 1 channel short-circuit output, can control door lock or alarm light; support flexible custom function, can be linked with third-party equipment and platform applications

◆ Two installation methods: embedded installation and surface installation.

◆ Compatible with any network structure such as routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, 5G, multicast, unicast, etc.

◆ Digitalized product, easy to expand, not limited by geographical location, no need to add equipment for management of computer room, adopts the design concept of common network free line construction, easy to install.

★ Optional: POE power supply function, which can be used by adding a built-in POE module or an external POE power splitter, which is powered by a POE switch through a network cable.

★ Optional: 4G full Netcom Internet access function to meet the Internet wireless broadcast, through wireless Internet access.

★ Optional: TF card local recording and recording function to meet the audio and video recording storage.

Technical Parameters:

◆ Network interface: standard RJ45 input

◆ Transmission rate: 1000Mbps / 100Mbps / 10Mbps

★ Support protocol: TCP / IP, UDP, IGMP (multicast), SIP, ONVIF, GB28181

◆ Audio format: MP3, WMA, WAV

◆ Audio sampling, bit rate: 8KHz ～ 48KHz, 16bit, 8Kbps-320Kbps

◆ Video transmission bit rate: 128Kbps-10Mbps

◆ Camera: CMOS

◆ Audio interface: Aux input: 350mV; Line out output level / impedance: 1000mV / 470Ω; recording output: 1V / 0dB

◆ Short circuit interface: short circuit input: 0V / 3.3V, support dry node input; short circuit output: maximum 3.3V / 125VAC or 1A / 30VDC dry node input and output

◆ Working temperature: 5 ℃ ～ 40 ℃

◆ Working humidity: 20% ～ 80% relative humidity, no condensation

◆ Power input: 190 ~ 240V 50-60HZ; DC24V / 5A

◆ Output power: 2x50W

◆ Power consumption: ≤50W

◆ Dimension: 260x260x2406mm (not including the monitoring rod)

◆ Weight: 35.00Kg
