Product Usage:

It is suitable for the main control room, sub-control room, command center, alarm center, office, conference room and other occasions. It can make unidirectional (point-to-point, partition or whole area) calls to various terminals in the network, two-way visual intercom, Monitor and video conference.

Features:

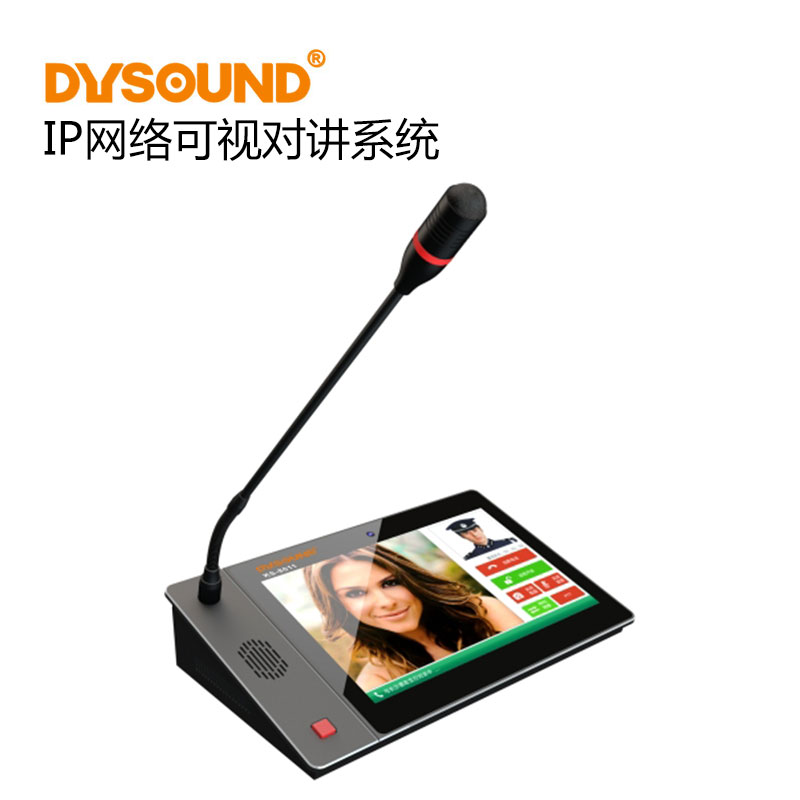

◆ Desktop design, black alumina brushed panel, exquisite and beautiful, sophisticated craftsmanship, full of modern sense.

◆ The product is based on the Linux operating system architecture, has extremely high security and excellent stability, and supports 7x24 hours of uninterrupted work.

◆ Using professional audio and video processing chip and embedded Android operating system, it is stable and reliable.

◆ 10.1 inch digital true color display, full capacitive touch screen, resolution up to 1280 * 720, easy and fast control.

◆ Built-in 2 million pixel high-definition digital camera, using H.264 encoding, to achieve high-definition visual two-way video calls.

◆ Built-in 3W full-range speaker and high-sensitivity microphone for hands-free calling, receiving broadcast and monitoring (digital noise reduction).

◆ Duplex high-definition video intercom can be performed by the management host and extension or other hosts and extensions.

◆ With red emergency button, one-key emergency broadcast can be made in the whole area;

◆ Can use the numeric keyboard to quickly make a loudspeaker broadcast to the whole area shouting, district shouting, and point-to-point terminals.

◆ Support loop monitoring / monitoring terminal, the content is stored in the server, and local browsing and query.

◆ It can detect the login status, intercom status and task status of the intercom extension and broadcast terminal in real time, which is convenient for debugging, overhaul and maintenance.

◆ When a call or alarm occurs, the location of the alarm point can be displayed on the electronic map in real time; the front-end alarm point can be quickly called through the electronic map.

◆ Support call transfer function, transfer on busy, manual transfer, non-response transfer, etc.

◆ Support multi-party streamlined audio and video conference calls, up to 40 participants;

◆ Compatible with standard SIP protocol, can be separately connected to VOIP telephone system (Asterisk and other mainstream IP-PBX) for two-way intercom conversation.

◆ 1 channel Aux audio input, support audio collection, upload the collected audio to the server for broadcasting.

◆ One line out independent audio output to achieve external amplifier amplification; support standard headphone jack, audio monitoring, head-mounted microphone amplification, etc.

◆ Built-in SD card, download and store intercom records.

◆ With HDMI interface, it can be connected with an external display, display high-definition video in full screen, and provide network video data, which can be displayed on a large screen.

◆ Super directional microphone, clear and loud voice, ensure clear and clear conversation.

◆ Compatible with any network structure such as routers, switches, bridge gateways, Modem, Internet, 2G, 3G, 4G, 5G, multicast, unicast, etc.

◆ Digitalized product, easy to expand, not limited by geographical location, no need to add equipment for management of computer room, adopts the design concept of common network free line construction, easy to install.

★ Optional: POE power supply function, which can be used by adding a built-in POE module or an external POE power splitter, which is powered by a POE switch through a network cable.

Technical Parameters:

◆ Network interface: 1 group RJ45

◆ Transmission rate: 1000Mbps / 100Mbps / 10Mbps

★ Support protocol: TCP / IP, UDP, ARP, ICMP, IGMP (multicast), HTTP, IETF SIP

◆ Audio format: MP3, WMA, WAV

◆ Audio sampling, bit rate: 8KHz ～ 48KHz, 16bit, 8Kbps-320Kbps

◆ Video transmission bit rate: 39Kbps-2048Kbps

◆ Camera: CMOS 200W pixels

◆ Frequency response: 80KHz ～ 16KHz -3dB / + 1dB

◆ Harmonic distortion: THD ≦ 1%

◆ Signal to noise ratio: ≧ 65dB

◆ Network voice delay: ≤30ms

◆ Display: TFT 10.1 "LCT-1280x720

◆ Display language: Chinese, English

◆ Interface: 1 RJ45 network port, 1 Aux audio input, 1 Aux audio output, 1 Sd card socket, 1 USB socket, 1 HDMI output

◆ Working temperature: 5 ℃ ～ 40 ℃

◆ Working humidity: 20% ～ 80% relative humidity, no condensation

◆ Power input: 190 ~ 240V 50-60HZ; DC12V / 5A

◆ Power consumption: ≤20W

◆ Dimension: 300x190x70mm

◆ Weight: 2.0Kg
