Features:

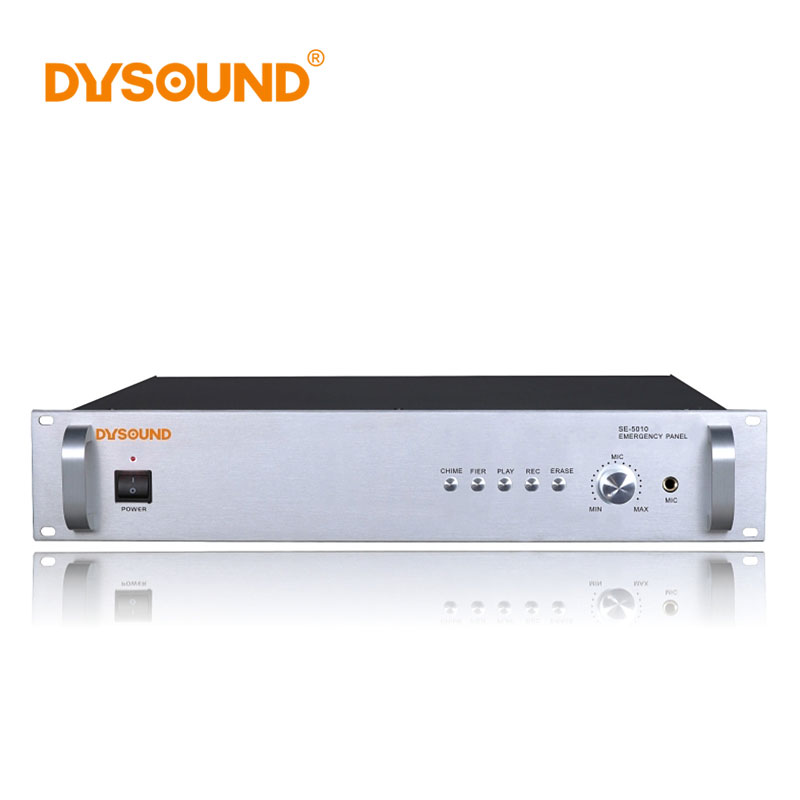

-High-grade aluminum 2U silver brushed panel, beautiful and elegant;

-Automatically play pre-set siren or curing recording when short circuit, 12V-24V alarm signal input;

-Two choices of playback function: siren, solid recording;

-Choose between MIC or LINE recording input mode;

-Adjustable recording level and output level;

-Can manually force alarm and play recording;

-The panel is equipped with touch button operation, which can manually arbitrarily order, record settings and delete records;

-Optional emergency alarm mode: the alarm sound will stop immediately after the alarm short circuit trigger is cancelled; the alarm sound will be played cyclically after the alarm short circuit trigger is cancelled (need to manually press the STOP key to cancel the alarm)

-LEDs on the panel will give corresponding instructions when alarming and playing recordings.

Technical Parameters

-Microphone input: <5mv, 600ohms (Ω), unbalanced;

-Line input: <400mv, 10k ohms (Ω), unbalanced;

-Non-linear distortion: THD <0.01% at 1kHz;

-ADC / DAC: Sampling frequency: 8kHz 5Bit;

-Recording time: 1 minute (normal operating conditions, erasable 8000-10000 times);

-Number of recordable segments: 3 ~ 5 segments (depending on the recording time);

-Alarm activation level: (0V) short circuit signal;

-Power cord: (3 × 0.75 mm2) × 1.5M (standard);

-Power supply: AC 220V ± 10% 50-60Hz;

-Power consumption: 5 ~ 10W;

-Machine size: 88 (H) × 484 (W) × 340 (D) mm;

-Net weight: 6.5kg;
