Features:

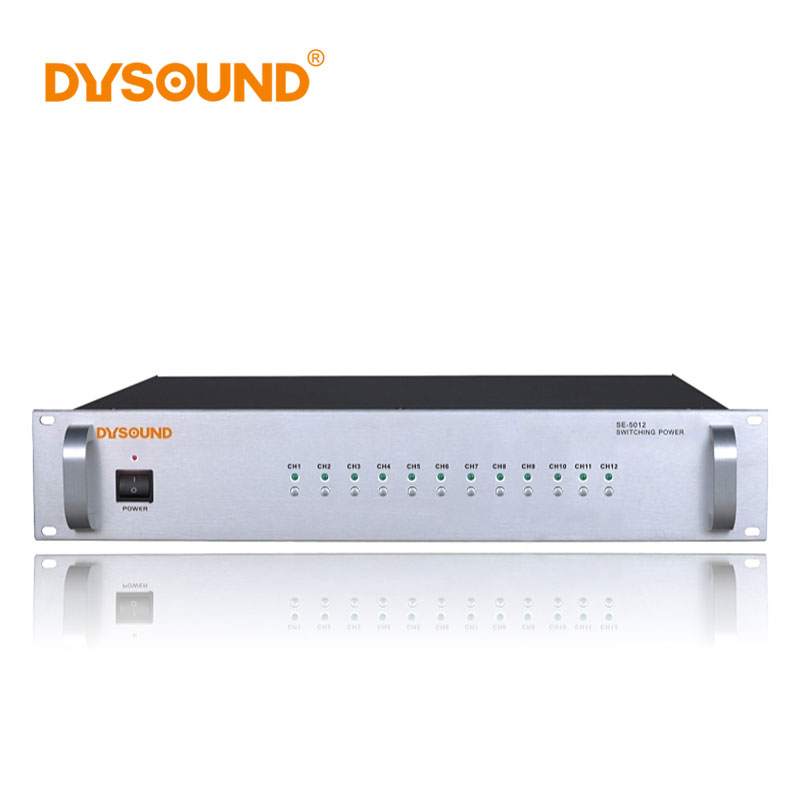

-Standard chassis design, 2U aluminum alloy brushed panel; user-friendly drawing design, beautiful and practical;

-12 channels (DC24V / 1A) output;

-Automatically switch to the corresponding channel when there is short circuit alarm activation signal input;

-12 green LEDs visually display the corresponding channels;

-The fire alarm activation signal is optional for high and low levels;

-It has two 25-pin input / output activation interfaces;

-Used to drive strong cut system.

Technical Parameters

-Number of controllable channel groups: 12 channels (activated by alarm signal) ‘CH1 ~ CH12’;

-Alarm activation: ‘ALARM in’, ‘ALARM OUT’;

-Alarm activation: low level (0V);

-Controlled voltage output: DC24V × 1A / each channel ‘CH1 ~ CH12’ Note: It is required that the line resistance per kilometer is less than 20 ohms;

-Power cord: (3 × 1.5 mm2) × 1.5M (standard);

-Power consumption: 20 ~ 300W;

-Machine size: 89 (H) × 483 (W) × 350 (D) mm;

-Net weight: 6.3kg.
