Features:

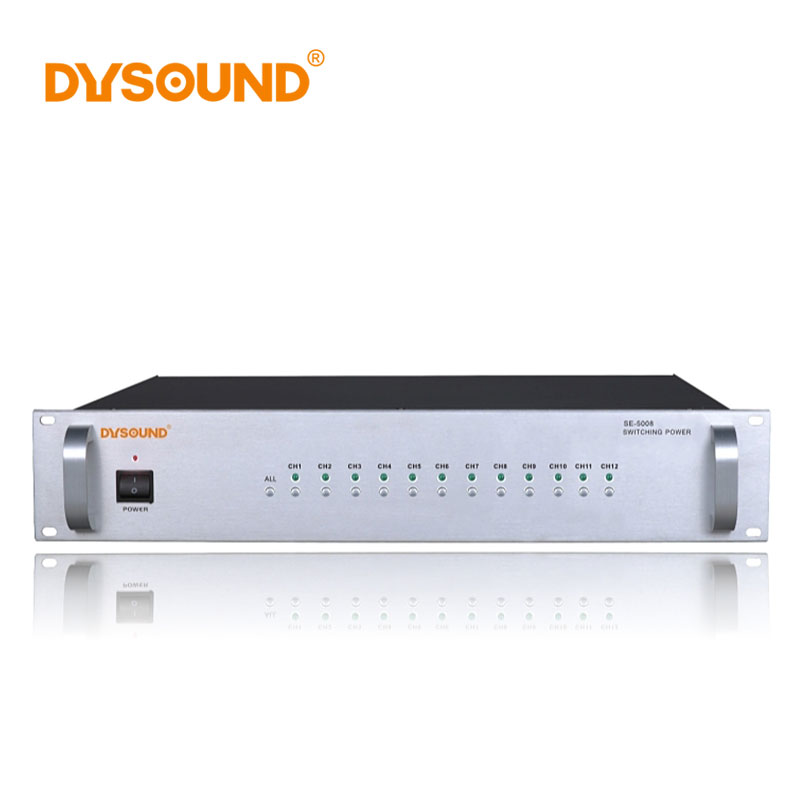

-Standard chassis design, 2U aluminum alloy brushed panel; user-friendly drawing design, beautiful and practical;

-12-way independent partition selection switch, the partitions can be switched at will without interfering with each other;

-Equipped with 4 audio inputs, the working status of the partition is indicated by indicator lights;

-With 4 audio inputs, 2 of which are background music programs and 2 are emergency priority programs;

-There are two kinds of short circuit control signal input, one is to trigger the whole area, and the other is the whole area short circuit signal output;

-The device adopts double relays and double-cut control circuit at the same time, and the isolation of the channel is ≥80dB, which solves the problem of crosstalk between channels.

Technical Parameters

-Group A1 input: 70V / 100V, audio signal "CH1-CH3";

-Group A2 input: 70V / 100V, audio signal "CH4-CH6";

-Group A3 input: 70V / 100V, audio signal "CH7-CH9";

-Group A4 input: 70V / 100V, audio signal "CH10-CH12";

-Group B1 input: 70V / 100V, emergency broadcast (alarm) audio signal "CH1-CH3";

-Group B2 input: 70V / 100V, emergency broadcast (alarm) audio signal "CH4-CH6";

-Group B3 input: 70V / 100V, emergency broadcast (alarm) audio signal "CH7-CH9";

-Group B4 input: 70V / 100V, emergency broadcast (alarm) audio signal "CH10-CH12";

-Partition input capacity: total audio signal input capacity: 8kW; the average output load capacity of each corresponding partition is 600W; emergency broadcast (alarm) audio signal input total capacity: 8kW; the average output output load of each corresponding partition is 600W ;

-Alarm activation input: (0V) short circuit signal (ALARM IN);

-Alarm activation output: (0V) short circuit signal (ALARM OUT);

-Protection: AC FUSE × 0.5A;

-Power supply: AC 220V ± 10% 50-60Hz;

-Power consumption: 15-20W;

-Machine size: 88 × 485 × 340 mm;

-Net weight: 6.8Kg;
