Features:

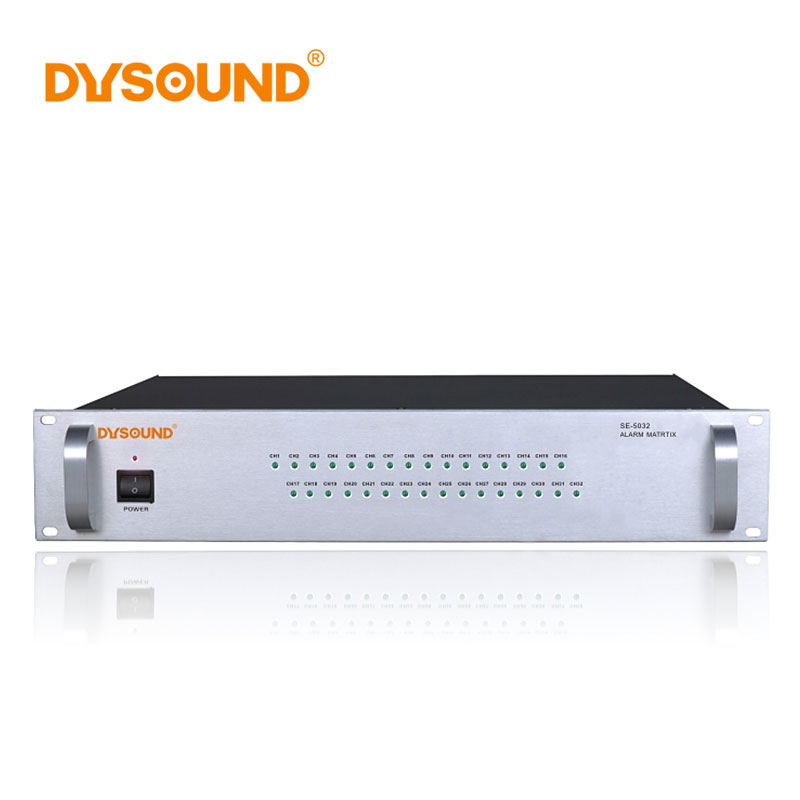

-Standard chassis design, 2U aluminum alloy brushed panel; user-friendly drawing design, beautiful and practical;

-Intelligent interface for 32 zone fire alarm, automatically activated;

-Programmable setting of N ± 1 or N ± 4 adjacent layer (zone) automatic alarm trigger;

-Use 8-bit address selection switch to set N ± 1 or N ± 4;

-32 green LEDs visually display the corresponding partition;

-32-channel alarm activation signal input;

-A total of 32 alarm activation signal outputs, no matter what state the system is in, as long as there is a fire signal input, it can automatically identify the area and forcibly insert the alarm broadcast;

-RJ485 communication interface for alarm signal input / output;

-With 2 short-circuit activated output ports, it supports multiple access modes of short-circuit and 12V ～ 24V;

-With high and low level alarm signal selection switch;

-The whole area alarm can be triggered by the manual button on the panel.

Technical Parameters

-Activate the output port ALARM: (high level (+ 12V ~ + 24V) or low level (0V));

-Number of controllable channel groups: thirty-two channels (activated by alarm signal) ‘CH1 ~ CH32’;

-Alarm activation level selection: high level (+ 2V ~ + 24V) or low level (0V), select ‘HIGH’ / ‘LOW’ by INPUT LEVEL setting switch;

-Alarm activation input port: a group of ‘ALARM (1 ~ 32)’;

-Number of activated neighbors: ± 1, ± 2, ± 3, ± 4;

-Power cord: (3 × 0.75 mm2) × 1.5M (standard);

-Power supply: AC 220V ± 10% 50-60Hz;

-Power consumption: 15 ~ 20W;

-Machine size: 88 (H) × 485 (W) × 340 (D) mm;

-Net weight: 6kg;
